Why purify transformer oil? (oil purifier, oil purification, oil filtration, oil recycling, oil treatment, oil regeneration )

Why purify transformer oil? Maybe the first question should be, “why is it important to have purified oil in a transformer?”  Dissolved gasses in transformer oil can cause arcing, corona discharges, and overheating--reducing the electrical efficiency and lifetime of the transformer. Likewise, water contamination at levels as low as 30 ppm (parts per million) can adversely affect the insulating strength of the oil. With ever-increasing standards for energy efficiency of power distribution transformers, the need to effectively degas will become even more important in the future. particles contamination will also affect the function of insulating oil. So we need to clean used transformer oil.

Application:

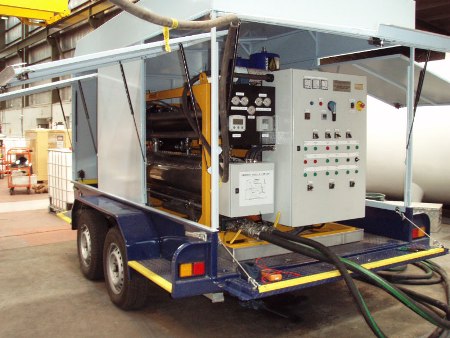

  Our Oil regeneration system (Series ZYD) has been specially designed for on site use to completely regenerate insulating oils in energized or de-energized transformers. The ZYD system provides regular oil purification such as degassing, drying and particulate removal but also can remove acidity, sludge, other soluble oil decay products and discoloration.

This is accomplished by the use of high vacuum degasification technology and particulate filters combined with our special brand of earth. After treating, the oil can be reused as new. For special application, the system also can be mounted on a leak proof base and can be installed and operated on a trailer.

Features:
1. Besides the common vacuum oil purifier's function of dewatering, degassing and eliminating particles, this machine can regenerate the seriously deteriorated oil by removing the polarity materials, such as the deep oxides, free carbon in the oil effectively. It can make the seriously deteriorated oil reach to the normal index like anti-oxides, acid-alkali water-solubility.

2. Operational can be P.L.C (Programmable Logic Controller).
3. Unique vacuum dehydration, degassifier, regeneration system, adopt stereo-evaporation technology, high efficiently remove water, gas, particles from transformer oil, improve oil quality and dielectric strength.
4. Duplex 3D stereo-evaporation, eliminating the liquid water quickly

5. UK g technology by which the trace water that is show chain, such as dissolved water, can be removed effectively.
6. Instinctive removing impurities system filtering through double FH trapezoidal network and absorbing by high polymer without the mechanical power

7. Advanced infrared liquid-level automatic control system to accomplish fully automatic control.
8. Specially applied to vacuum oiling and drying for power transmission equipments.
9. The oil of any grades can be treated either on- or off-load.
10. Special oil pump design with lower noise.

11. Special additives for depolarization, can recover oil color of aged transformer oil to new, equipped with flexible unloading device of short time, good efficiency small quality. Discolor under vacuum can save cost of treatment, the waste impurities doesn’t pollute environment (it can be used to architecture and road pave)

 Advantages:
 Comparing with the single-stage vacuum oil purifier, this machine can dewater, degas and removes the impurities more quickly, more completely, and makes the oil BDV (Breakdown Voltage) of 70kV or higher. As the bridge-type vacuum linking system that can purify and also can be an independent vacuum power supply, this machine can treat the electric insulation devices.

(oil purifier, oil purification, oil filtration, oil recycling, oil treatment, oil regeneration, oil restoration, oil filtering, waste oil disposal, oil reclaiming, waste oil management, energy saving, oil reconditioned, oil reconstituted, oil restituting, oil recovering ,oil filtration, oil filter, petroleum machine)

Our Main Products:
Series ZY Single-Stage Vacuum Transformer Oil Purifier
Series ZYD Double High Vacuum Transformer Oil Purifier
Series ZYB Multiply-Function insulating oil treatment machine
 Series TY Turbine Oil Purification Apparatus
Series TYA Lubricating oil/ hydraulic oil purification unit
Series LYE Engine oil recycling system
Series TYB Portable light Fuel oil purification machine
Series PL Plate pressure oil purifier
Series TYD Vacuum dehydrator
Series EFD Explosion protection filtration machine
Series JL Portable oil filtering and oiling machine
Series IIJ Oil Tester (BDV Tester)

(oil purifier, oil purification, oil filtration, oil recycling, oil treatment, oil regeneration, oil restoration, oil filtering, waste oil disposal, oil reclaiming, waste oil management, energy saving, oil reconditioned, oil reconstituted, oil restituting, oil recovering ,oil filtration, oil filter, petroleum machine)

For more information of our machine, please feel free to contact us.
